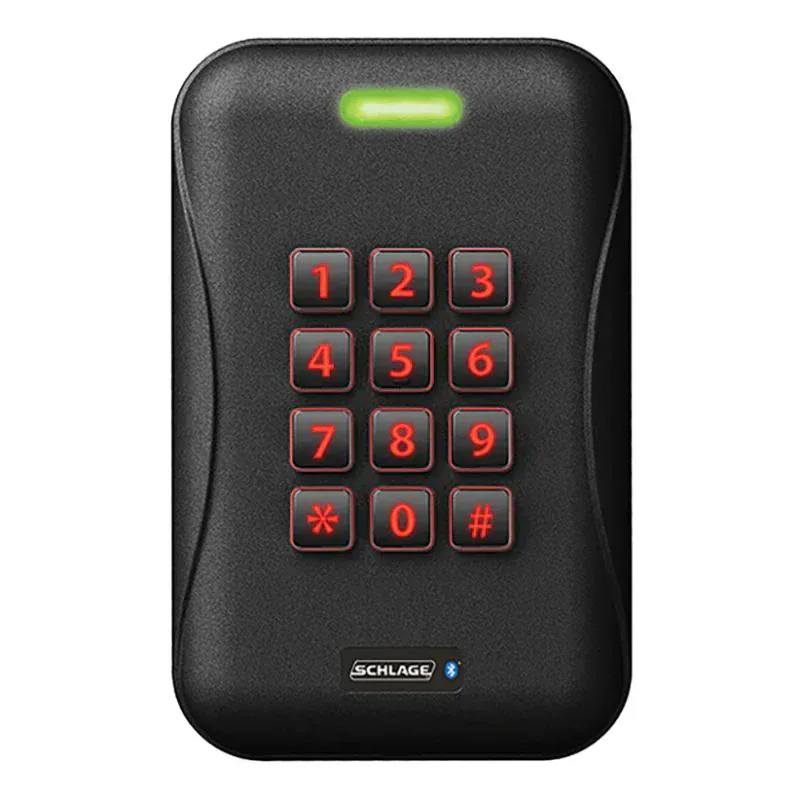

Schlage MTKB15 Single-Gang BLE Multi-Technology Reader with Keypad for Chicago Mobile 2-Factor Access

Model / Series: MTKB15

The Schlage MTKB15 is the flagship of the Schlage MT series — single-gang form factor with integrated keypad AND Bluetooth Low Energy mobile credentials, plus 125 kHz Prox + 13.56 MHz smart card support. Enables PIN + mobile or PIN + card 2-factor authentication. The Chicago choice for sensitive doors that need mobile-credential 2-factor on third-party access platforms.

Schlage MTKB15

Specifications

Brand
Schlage (Allegion)
Model
MTKB15
Series
Schlage MTB (Multi-Technology + BLE + Keypad)
Form Factor
Single-gang reader with integrated 12-button keypad and BLE
Multi-Format Support
125 kHz Prox + 13.56 MHz Smart Cards (iCLASS, MIFARE, DESFire, FeliCa) + Bluetooth Low Energy mobile credentials
Mobile Credentials
Allegion ENGAGE Mobile / Schlage Mobile Access via Bluetooth Low Energy
Keypad
12-button (0–9, *, #) for PIN entry
2-Factor Authentication
PIN + card or PIN + mobile credential (configurable per door at the panel)
Output Protocol
Wiegand 26-bit and configurable bit formats
Power
5–14 V DC
Operating Temperature
−31 °C to +66 °C
Environmental Protection
IP65
Mounting
US single-gang wall plate
Indicators
Multi-color LED + audible buzzer + key-press feedback
Compatible Platforms
Brivo, Genetec, Lenel, Software House, AMAG, Continental, S2, and other Wiegand-compatible systems

Best Fit & Recommended For

Chicago commercial server rooms and IT closets with mobile credentials
Healthcare pharmacy, medication storage, and records rooms with mobile staff credentials
Banking back-office and vault-area access with mobile staff entry + PIN
Education administrative office with mobile faculty credentials and PIN
Federal grant facilities requiring mobile 2-factor authentication
Property management secure-area doors with mobile-first staff credentials
Retail cash office and safe room with mobile manager credentials
Industrial / warehouse high-value storage with mobile contractor credentials
Government and municipal restricted-area doors with employee mobile credentials
Hospitality cash office and secure storage with mobile manager access

Schlage MTKB15 Single-Gang BLE Multi-Technology Reader with Keypad

The Schlage MTKB15 is the flagship of the Schlage MT-series — every credential type, every authentication mode, in one single-gang body:

  • Bluetooth Low Energy for Allegion ENGAGE Mobile / Schlage Mobile Access smartphone credentials
  • 13.56 MHz smart cards (iCLASS, MIFARE Classic / Plus / DESFire, FeliCa, Picopass)
  • 125 kHz Prox (HID, AWID, EM, Indala) for legacy installed-base
  • 12-button keypad for PIN + mobile or PIN + card 2-factor authentication
  • Wiegand output to any commercial access control panel

The MTKB15 is the Chicago choice for sensitive doors that need mobile-credential 2-factor authentication on third-party access platforms — the modern replacement for older keypad-only or card-only 2-factor solutions.

Mobile + PIN: The Modern 2-Factor Pattern

For sensitive doors, the standard 2-factor pattern in 2026 is phone + PIN rather than card + PIN:

  • Mobile credential is tied to a specific device, encrypted, and instantly revocable through the admin dashboard
  • PIN adds the “something you know” factor that survives phone loss or theft
  • Existing physical cards still work as a fallback for staff who haven’t enrolled mobile yet, or for visitors and contractors who don’t carry a building-issued phone credential

The MTKB15 supports the full credential mix at one reader — admin policies decide which combinations satisfy access at each door.

Where the Schlage MTKB15 Wins in Chicago

  • Commercial server rooms and IT closets with mobile staff credentials + PIN
  • Healthcare — pharmacy, medication storage, records rooms with mobile clinician credentials + PIN
  • Banking back-office and vault-area access with mobile staff entry + PIN
  • Education — administrative office (bursar, registrar, IT, principal) with mobile faculty credentials + PIN
  • Federal grant facilities requiring mobile 2-factor authentication
  • Property management secure-area doors with mobile-first staff credentials
  • Retail cash office, safe room, and inventory-control with mobile manager + PIN
  • Industrial / warehouse high-value storage with mobile contractor + PIN
  • Government and municipal restricted-area doors with employee mobile + PIN
  • Hospitality cash office, manager office, and secure storage with mobile + PIN

MTKB15 vs. Sibling Schlage Readers

FeatureMTKB15 (this)MTK15MTB15
KeypadYesYesNo
Mobile (BLE)YesNoYes
Multi-tech cardYesYesYes
Best fitMobile 2-factor sensitive doorsCard-only 2-factorMobile 1-factor

The MTKB15 is the right pick when the project requires both mobile credentials and 2-factor — the most common modern combination for healthcare, banking, education, and federal projects.

Local Chicago Coverage

Vidimost installs the Schlage MTKB15 across the full Chicago metropolitan area for sensitive mobile-credential 2-factor doors.

Professional Installation by Vidimost

Vidimost LLC installs Schlage MTKB15 BLE + keypad readers across Chicago for healthcare, banking, education, federal, government, and commercial sensitive-area projects requiring mobile-credential 2-factor authentication. Full-scope service includes site walkthrough, 2-factor policy planning, mobile credential rollout via the Allegion ENGAGE / Schlage Mobile Access platform, Wiegand wiring with PIN + credential combined burst configuration, panel commissioning, and operator + admin training. Contact us for a free site walkthrough and quote.
