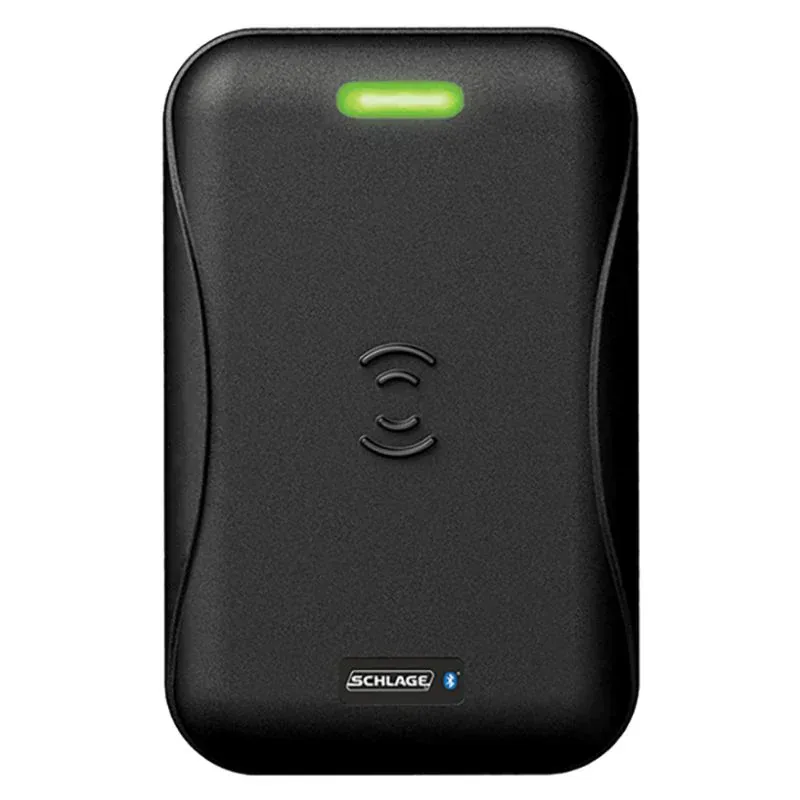

Schlage MTB15 Single-Gang BLE Multi-Technology Reader for Chicago Mobile-Credential Access
Model / Series: MTB15
The Schlage MTB15 is a single-gang BLE multi-technology reader from Allegion's Schlage MTB series — adds Bluetooth Low Energy mobile credentials (Allegion ENGAGE / Schlage Mobile Access) on top of the standard MT15's 125 kHz Prox + 13.56 MHz smart card support. Wiegand output. The Chicago choice for general commercial doors that want both a multi-tech card population and modern phone-based credentials.
Specifications
- Brand
- Schlage (Allegion)
- Model
- MTB15
- Series
- Schlage MTB (Multi-Technology + BLE)
- Form Factor
- Single-gang reader (US wall plate)
- Multi-Format Support
- 125 kHz Prox + 13.56 MHz Smart Cards (iCLASS, MIFARE, DESFire, FeliCa) + Bluetooth Low Energy mobile credentials
- Mobile Credentials
- Allegion ENGAGE Mobile / Schlage Mobile Access via Bluetooth Low Energy
- Output Protocol
- Wiegand 26-bit and configurable bit formats
- Power
- 5–14 V DC
- Operating Temperature
- −31 °C to +66 °C
- Environmental Protection
- IP65
- Mounting
- US single-gang wall plate
- Indicators
- Multi-color LED + audible buzzer
- Compatible Platforms
- Brivo, Genetec, Lenel, Software House, AMAG, Continental, S2, and other Wiegand-compatible systems
Best Fit & Recommended For
Schlage MTB15 Single-Gang BLE Multi-Technology Reader
The Schlage MTB15 is the mobile-credential version of the standard MT15 — same single-gang form factor, same multi-tech credential support (125 kHz Prox + 13.56 MHz smart cards), plus integrated Bluetooth Low Energy for Allegion ENGAGE Mobile and Schlage Mobile Access smartphone credentials. Wiegand output to any commercial access control panel.
The MTB15 is the Chicago choice for commercial properties that want mobile-first credentials without forcing a forklift card replacement — existing 125 kHz Prox cards keep working, existing 13.56 MHz smart cards keep working, and new staff and contractors get phone credentials issued through the building’s access control admin platform.
Why Mobile-First Matters in 2026
Phones replace cards for the working population that already carries them everywhere. Mobile credentials reduce four real-world costs:
- Card replacement fees — every lost or damaged card costs ~$10–25 to reissue plus admin time
- Credential turnover overhead — a 200-employee site with 30% annual turnover means 60+ card events per year just for new hires and departures
- Tailgating and credential sharing — phones are personal, encrypted, and tied to a specific device; cards are easily handed to visitors or borrowed
- Lockout response — mobile credentials can be issued or revoked instantly through the admin dashboard, no physical card pickup required
The MTB15 supports both mobile and physical credentials at the same reader — most properties roll out mobile to all new staff and keep cards for visitors, contractors, and edge cases.
Where the Schlage MTB15 Wins in Chicago
- Chicago commercial offices rolling out mobile-first staff credentials
- Multi-tenant residential and HOA buildings issuing phone credentials to residents (suburban Chicagoland HOAs in Wilmette, Glencoe, Highland Park, Schaumburg, Hoffman Estates, Naperville, Wheaton, Oak Brook)
- Property management portfolios standardizing on mobile + multi-tech across multiple buildings
- Healthcare — clinic staff entries with mobile credentials for nurses, clinicians, and administrators
- Education — administrative office, faculty, and staff entries
- Retail back-of-house and after-hours service entries with mobile-first staff
- Hospitality back-of-house and operations doors for housekeeping and maintenance
- Industrial and warehouse personnel doors with contractor mobile credentials
- Government / municipal with employee mobile credentials
MTB15 vs. MT15
| Feature | MTB15 (this) | MT15 |
|---|---|---|
| Mobile (BLE) | Yes — ENGAGE / Schlage Mobile Access | No |
| 125 kHz Prox | Yes | Yes |
| 13.56 MHz Smart Card | Yes | Yes |
| Output | Wiegand | Wiegand |
| Form factor | Single-gang | Single-gang |
| Best fit | Mobile-first commercial doors | Card-only commercial doors |
For projects that don’t need mobile credentials, the MT15 is the right cost-conscious pick. For new-build projects in 2026 we default to the MTB15 — the small price premium is recovered by reduced card-management overhead within the first year of operation.
Local Chicago Coverage
Vidimost installs the Schlage MTB15 across the full Chicago metropolitan area for mobile-first commercial access control deployments.
Recommended Pairings
- Schlage MTB11 Mullion BLE Reader — for narrow-frame mobile-credential positions
- Schlage MTKB15 BLE Keypad Reader — for sensitive 2-factor mobile + PIN doors
- Schlage MT20W Desktop Enrollment Reader — for credential issuance at admin desks
- Brivo ACS300-E-B Control Panel — for cloud-managed Brivo deployments using MTB-series readers over Wiegand
Professional Installation by Vidimost
Vidimost LLC installs Schlage MTB-series BLE readers across Chicago for commercial offices, multi-tenant residential, healthcare, education, property management, hospitality, industrial, and government projects. Full-scope service includes site walkthrough, model specification per opening, Wiegand wiring, panel commissioning, mobile credential rollout via the access platform’s mobile app, and operator + admin training. Contact us for a free site walkthrough and quote.
