Schlage RC11 Mullion Reader-Controller for Chicago Storefront Single-Door + Zentra Enrollment

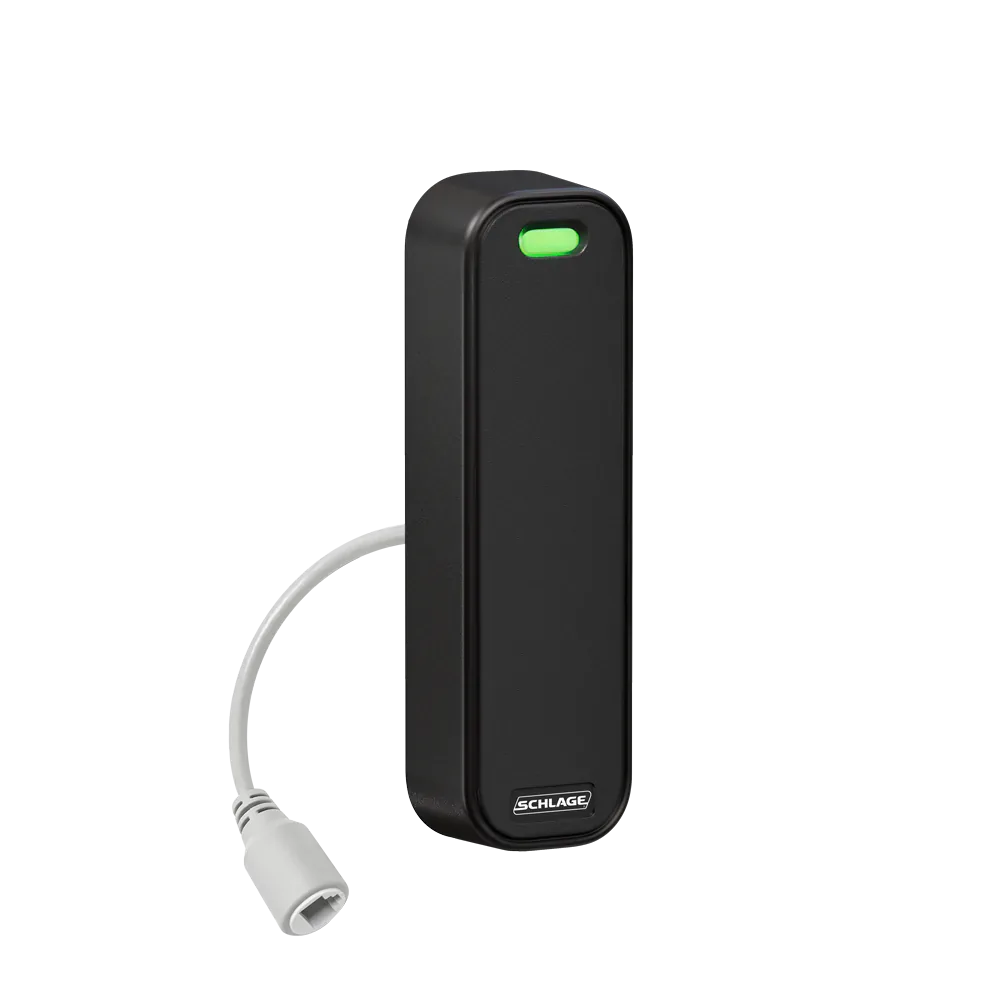

Schlage RC11 Mullion Reader-Controller

The Schlage RC11 is the mullion-style hybrid reader-controller from Allegion’s Schlage RC series — packaged in a narrow ~45 mm body that fits cleanly on the metal mullion of an aluminum-and-glass storefront door. Like its sibling RC15, it combines a multi-technology reader (125 kHz Prox + 13.56 MHz smart cards + optional BLE mobile credentials) with an integrated single-door controller — one unit handles credential reading, access decision, and lock-output drive.

Doubles as an Enrollment Station for the Zentra Platform

A key feature of the Schlage RC series: the RC11 / RC15 / RCK15 can also serve as an enrollment station for XE360 wireless electronic locks on the Allegion Zentra platform. For a building where the storefront entry is the only door with running power and network — but the interior doors (classroom, dorm room, guest room, suite) use XE360 wireless locks on the Allegion Zentra platform — the RC11 mounted at that storefront entry becomes the central enrollment point for all XE360 / Zentra credentials.

Where the Mullion Form Factor Matters

A storefront door has its handle, lock, and reader competing for ~75 mm of mullion width. A standard single-gang reader-controller (the RC15 is too wide) does not fit on the mullion. The RC11’s narrow ~45 mm body fits on the mullion at hand level — clean install, no glass-mounted readers, no awkward wall placement.

Cross-Schlage RC Comparison

Feature	RC11 (this)	RC15	RCK15
Form factor	Mullion (~45 mm narrow)	Single-gang	Single-gang + keypad
Keypad	No	No	Yes (PIN entry for 2-factor)
Multi-tech card	Yes	Yes	Yes
Integrated controller	Yes (1 door)	Yes (1 door)	Yes (1 door)
Zentra enrollment station (XE360)	Yes	Yes	Yes
Best fit	Storefront mullion + enrollment	General single-door + enrollment	Sensitive 2-factor + enrollment

RC11 vs. MT11 Schlage Readers

The standalone Schlage MT11 is a mullion reader that pairs with a separate access control panel. The RC11 adds the controller into the same body — no separate panel needed. Choose RC11 when:

• The storefront is a single door and a separate panel would be over-architected
• The property uses XE360 wireless locks (Zentra) for interior doors and needs an enrollment station that is also a working reader-controller
• Running cable from the mullion back to a panel room is impractical

Choose MT11 (mullion reader + separate panel) when the project includes 2+ storefront doors that benefit from centralized panel management.

Where the Schlage RC11 Wins in Chicago

• Chicago storefront and lobby vestibule single-door access
• Aluminum mullion frame doors needing both reader and controller in narrow form
• Properties using XE360 wireless locks on the Allegion Zentra platform where enrollment happens at the storefront entry
• Multi-tenant residential lobby vestibules with XE360 wireless unit doors at suburban Chicagoland HOAs
• Education facility main lobby vestibules with XE360 wireless classroom or dorm-room enrollment
• Hospitality lobby entries serving as guest-credential enrollment points for XE360 wireless guest rooms
• Healthcare clinic main entry vestibules with simplified all-in-one panel
• Office building lobby vestibules with XE360 wireless interior suite enrollment
• Retail storefront entries with XE360 wireless back-of-house enrollment
• Government and municipal lobby vestibules with XE360 wireless interior-area enrollment

Local Chicago Coverage

Vidimost installs the Schlage RC11 across the full Chicago metropolitan area for storefront / lobby vestibule reader-controller deployments and Zentra enrollment workflows.

Recommended Pairings

• Schlage RC15 Single-Gang Reader-Controller — for the matching wall-plate positions on the same project
• Schlage RCK15 Keypad Reader-Controller — for sensitive 2-factor doors needing both PIN entry and Zentra enrollment
• Schlage MT11 Mullion Reader — separate-reader version for projects with centralized panels
• Schlage MT20W Desktop Enrollment Reader — alternative USB desktop enrollment
• Schlage XE360 Wireless Electronic Lock — Zentra-platform wireless lock that this RC reader-controller pairs with for unified admin and credential enrollment across the property

Professional Installation by Vidimost

Vidimost LLC installs Schlage RC-series mullion reader-controllers across Chicago for storefront deployments and Zentra enrollment workflows. Full-scope service includes site walkthrough, mullion mounting plan, wiring through the frame chase, online-mode commissioning to the access platform, Zentra pairing and credential-Zentra enrollment workflow setup, and operator + admin training. Contact us for a free site walkthrough and quote.
