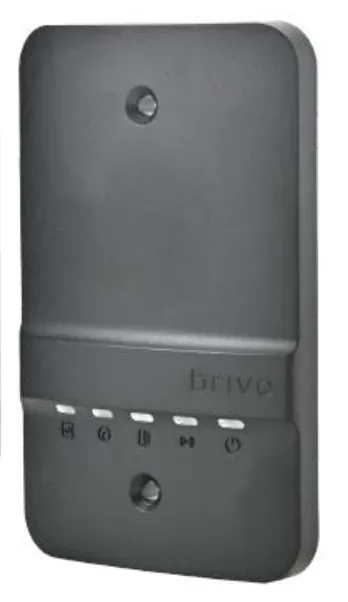

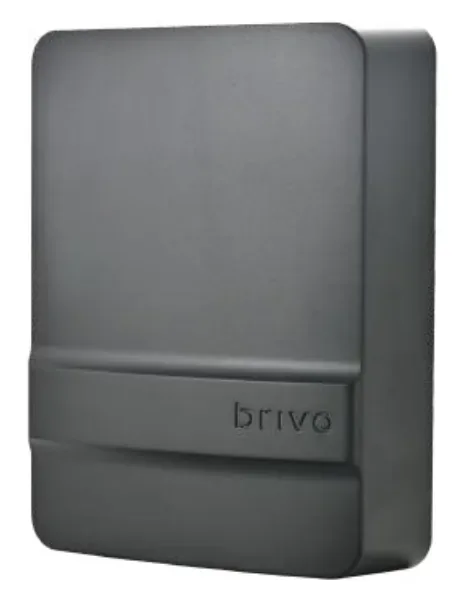

Brivo ACS-SDC-E Smart Door Controller Edge for Chicago Single-Door Cloud Access Deployments

Brivo ACS-SDC-E Smart Door Controller — Edge Variant

The Brivo ACS-SDC-E is the Edge variant of Brivo’s Smart Door Controller — a single-door cloud-managed access control panel designed to mount at the door rather than in a back-of-house panel room. The “E” adds modern edge-networking features: built-in WiFi (in addition to Ethernet), PoE power, and a refined metal enclosure with tamper detection. The right pick when running new wiring back to a centralized panel room is impractical, expensive, or impossible — retrofit projects, leased commercial space, historic buildings, remote campus doors, and tenant-paid additions.

Why “At-the-Door” Beats “Panel Room” for Some Doors

Traditional access control architecture concentrates panels in a back-of-house panel room and runs reader / lock / I/O wiring out to each door. That works beautifully for purpose-built commercial buildings with a dedicated MDF closet — but it falls apart in three common Chicago scenarios:

• Retrofit projects — running new low-voltage wiring through finished construction (especially historic Chicago buildings, masonry walls, terrazzo floors) is expensive and often impossible
• Leased commercial space — the tenant doesn’t have keys to the back-of-house, can’t drop new wiring into landlord-controlled risers, and only needs access control on their suite doors
• Remote campus doors — running 200 feet of cable back to a central panel for one door is uneconomic; an edge SDC at the door with PoE Ethernet from a nearby switch is faster and cheaper

The ACS-SDC-E solves all three: install the panel at the door in its own metal enclosure, run a single Ethernet cable to the nearest network switch, done.

When to Choose ACS-SDC-E vs. ACS-100

Both are single-door panels — the difference is form factor and mounting:

• ACS-SDC-E — at-the-door metal enclosure, designed to mount adjacent to the door it controls. PoE simplifies wiring; tamper detection protects the panel itself. Best for retrofit and leased space.
• ACS-100 — compact wall-mount panel, can be placed in a small closet, IDF, or anywhere a network jack and 12 V DC are available. Best for purpose-built spaces with conventional panel mounting.

Cross-Brivo Comparison

Feature	ACS-SDC-E (this)	ACS-100	ACS300-E-B	ACS6100
Doors per panel	1	1	2	16+
Mount location	At the door	Panel closet / IDF	Panel closet / IDF	Panel room (rack/blade)
Network	Ethernet + WiFi + PoE	Ethernet + WiFi + PoE	Ethernet + WiFi (+ optional LTE)	Ethernet (+ optional LTE)
Best fit	Retrofit, leased space, remote doors	Single-door purpose-built	2-door buildings	Enterprise 30+ doors

Where the Brivo ACS-SDC-E Wins in Chicago

• Chicago retrofit projects where panel-room wiring is impractical — historic buildings, masonry construction, finished tenant fit-outs
• Leased commercial space without dedicated back-of-house
• Tenant-paid retrofit doors at multi-tenant properties
• Remote single doors at large campuses
• Construction site offices with rapid commissioning
• Healthcare clinic side entries
• Retail back-of-house at small footprint locations
• Hospitality back-of-house single-door positions
• Education facility utility / equipment building access

Local Chicago Coverage

Vidimost installs the Brivo ACS-SDC-E across the full Chicago metropolitan area for retrofit, leased-space, and at-the-door cloud access control deployments.

Recommended Pairings

• Brivo ACS-100 — for single-door purpose-built spaces
• Brivo ACS300-E-B — for 2-door deployments
• Brivo ACS6100 — for enterprise high-density deployments
• Brivo Smart Readers — compatible reader family

Professional Installation by Vidimost

Vidimost LLC installs the Brivo ACS-SDC-E across Chicago for retrofit, leased-space, and at-the-door deployments at commercial offices, multi-tenant residential, healthcare, retail, hospitality, education, and construction site projects. Full-scope service includes site walkthrough, at-the-door enclosure mounting, PoE Ethernet wiring, lock and door-hardware integration, panel commissioning in the Brivo Access cloud, mobile credential rollout, and operator + admin training. Contact us for a free site walkthrough and quote.
