2N IP Base — Compact 1- or 2-Button HD IP Video Intercom for Chicago

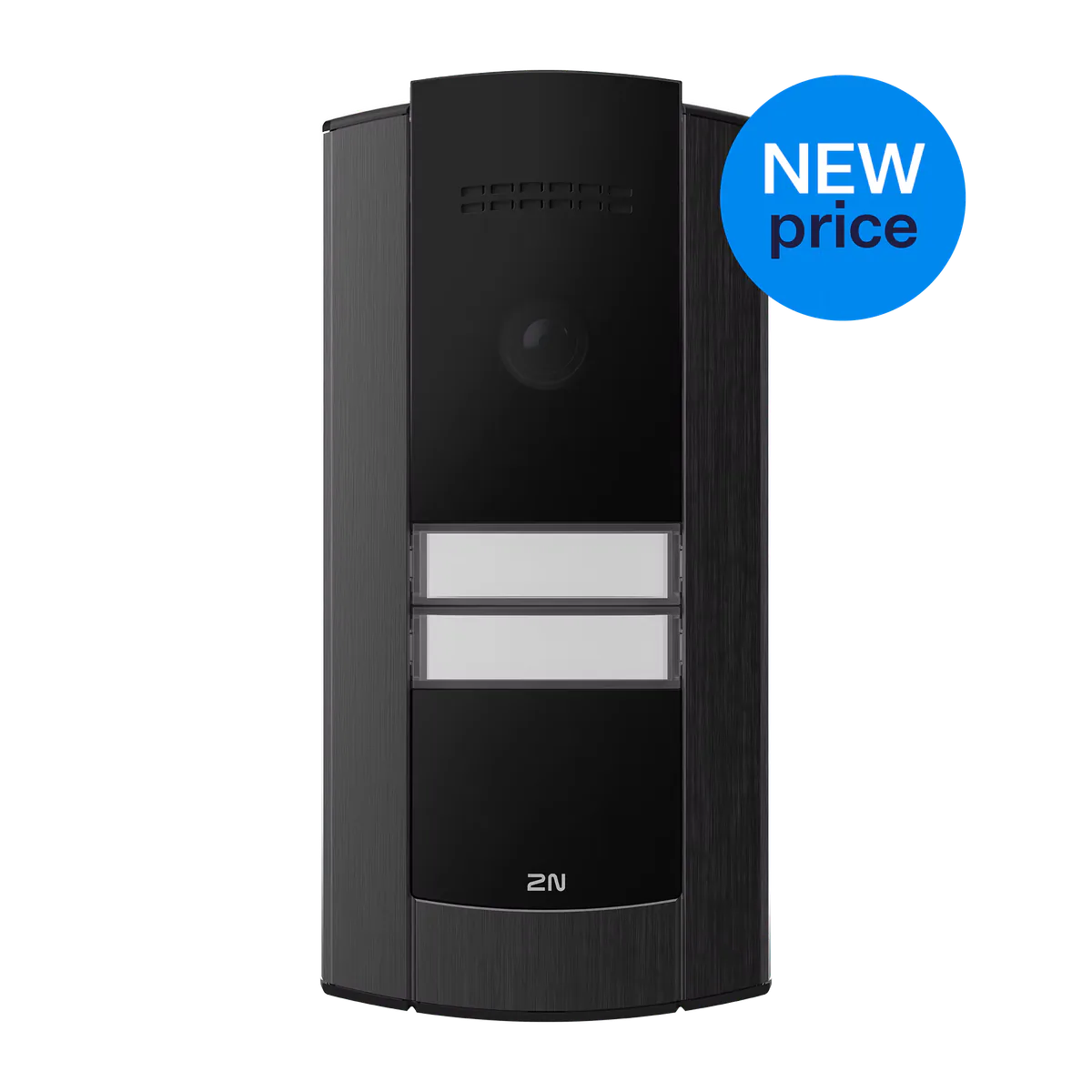

2N IP Base — Compact HD IP Video Intercom

The 2N IP Base is the compact, cost-effective IP video intercom — simple and fast installation, 1 or 2 backlit buttons, HD camera, PoE 802.3af or 12 V DC powered. The Chicago choice when a single-tenant home, small-office, or secondary entry needs a 2N-quality IP intercom without going to the modular Verso platform.

What’s Confirmed by the Official 2N Spec

These specifications come from 2N (2n.com) published IP Base product pages:

• Camera: HD 1280 × 960; 135° horizontal × 109° vertical viewing angle; no night vision
• Audio: built-in microphone; 2 W / 8 Ω speaker; 78 dB sound pressure at 1 KHz at 1 m
• Audio codecs: G.711, G.722, G.729
• Video codecs: H.263, H.263+, H.264 (VoIP calls only), MJPEG (HTTP streaming)
• Power: PoE 802.3af LAN connector with active switch output 8–12 V; PoE 10 V (adapter: source voltage minus 2 V, max 400 mA); optional external 12 V / 2 A DC
• Buttons: transparent plastic backlit buttons; 1 or 2 button configurations
• Tamper: built-in tamper switch

When IP Base Fits — Compact Cost-Effective Entry

Pick the 2N IP Base when:

• The entry needs 1 or 2 buttons (single-tenant home, small office, secondary door)
• PoE 802.3af is available (no separate power needed)
• Night vision is not required (well-lit entries, indoor placement)
• The deployment is cost-conscious but the customer wants a 2N IP intercom
• The site benefits from a built-in tamper switch for security event reporting

For modular multi-tenant flagship, step up to the 2N IP Verso 2.0. For tough outdoor IP69 / IK10, see the 2N IP Force 2.0. For premium residential single-family with Adaptive Face Zooming, see the 2N IP One. For minimalist single-button hidden-camera design, see the 2N IP Solo.

Where the 2N IP Base Wins in Chicago

• Single-tenant home main entry
• Small office / clinic main entry
• Secondary / staff door at multi-tenant property
• Cost-conscious 2N IP deployments
• Side / service entry at hospitality property
• Small retail back-office entry
• Storage / warehouse small-site entry
• Education facility small-classroom entry
• Healthcare facility back-office / break-room entry
• Property management small-portfolio entry

Local Chicago Coverage

Vidimost installs the 2N IP Base across the full Chicago metropolitan area for compact IP video intercom deployments.

Recommended Pairings

• 2N IP Verso 2.0 — modular flagship for multi-tenant / multi-credential
• 2N IP One — residential premium with Full HD + Adaptive Face Zooming
• 2N IP Solo — minimalist single-button with hidden camera
• 2N indoor answering units / smartphone app (specified per project)

Professional Installation by Vidimost

Vidimost LLC installs the 2N IP Base across Chicago for compact IP intercom deployments. Full-scope service includes site walkthrough, PoE / 12 V power selection, CAT5e / CAT6 cabling, surface or flush mounting, configuration of SIP / VoIP, and integration with answering devices and access control. Contact us for a free site walkthrough and quote.
