PoE Switch Guide for Security Cameras: How to Get It Right the First Time

Why the PoE Switch Is the Most Overlooked Part of a Camera System

Most people shopping for a security camera system spend their time comparing cameras and NVRs. That is understandable. But in my experience installing camera systems across Chicago offices, condos, and commercial buildings, the PoE switch is where installations go wrong most often.

A PoE switch is the device that connects your IP cameras to the network and delivers electrical power to each camera through the same Ethernet cable. No separate power supply. No outlet needed at the camera location. One cable handles everything.

When the switch is correctly sized and configured, the system runs quietly for years. When it is undersized, misconfigured, or cheap, you get cameras dropping offline randomly, rebooting during peak usage, and headaches that are difficult to diagnose.

Understanding PoE Standards

802.3af (PoE) — 15.4 Watts Per Port

This is the original PoE standard. It delivers up to 15.4 watts per port, with about 12.95 watts available at the device after cable loss. Most standard fixed IP cameras, including bullet, turret, and dome models, operate within this power range. If your system uses basic cameras without heaters or motors, 802.3af switches will work.

802.3at (PoE+) — 30 Watts Per Port

PoE+ doubles the available power per port. You need this for cameras with built-in heaters (essential for Chicago outdoor installations), PTZ cameras with pan-tilt-zoom motors, and higher-end cameras with advanced processing. I recommend 802.3at as the minimum standard for any new installation, even if your current cameras only need 802.3af. It gives you headroom for future upgrades.

802.3bt (PoE++) — 60 to 100 Watts Per Port

This is the newest standard, delivering 60 watts (Type 3) or up to 100 watts (Type 4) per port. You rarely need this for standard cameras, but it becomes relevant for devices like outdoor PTZ cameras with wipers and heaters, LED illuminators, or access control panels that combine a lock, reader, and intercom on a single PoE connection.

How to Calculate Your PoE Budget

The PoE budget is the total amount of power the switch can deliver across all its ports simultaneously. This is the number that matters most, and it is where most mistakes happen.

Here is how to calculate it:

Step 1: List every device that will connect to the switch. Include cameras, access control readers, intercom panels, wireless access points, and any other PoE devices.

Step 2: Note the maximum power draw for each device. Find this in the device’s spec sheet, not the marketing overview. Look for “Max Power Consumption” or “PoE Class.”

Step 3: Add up all the maximum power draws. This is your required PoE budget.

Step 4: Add a 20 to 30 percent buffer. Devices can draw more power during startup or in cold weather when heaters activate. You never want to run a switch at 100 percent of its PoE capacity.

A Real-World Example

Say you have 16 outdoor cameras, each drawing up to 13 watts, and two PTZ cameras drawing up to 25 watts each.

• 16 cameras at 13 watts = 208 watts
• 2 PTZ cameras at 25 watts = 50 watts
• Total required: 258 watts
• With 25 percent buffer: 323 watts minimum PoE budget

A switch marketed as “16-port PoE” that has a 250-watt PoE budget will not handle this load. You will see cameras dropping offline, especially during cold mornings when heaters kick in and power draw spikes. This is the number one issue I troubleshoot on service calls.

Managed vs Unmanaged Switches

Unmanaged Switches

Unmanaged switches are plug-and-play. You connect the cables, and they work. No configuration needed. For a small system with four to eight cameras in a single location with no other network traffic to worry about, an unmanaged PoE switch is fine.

Managed Switches

Managed switches give you control over the network. You can configure VLANs, set port priorities, monitor bandwidth, and troubleshoot remotely. For any system with more than eight cameras, any system that shares a network with business computers, or any system in a building with multiple tenants, a managed switch is not optional. It is a requirement.

Why VLANs Matter for Security Cameras

A VLAN (Virtual Local Area Network) creates a separate logical network within your physical network. Putting your cameras on their own VLAN means camera traffic does not interfere with your office computers, phones, or other business systems. It also means that someone on the business network cannot directly access camera streams, which is a basic but important security measure.

Here is a practical VLAN setup for a Chicago office building:

• VLAN 10: Business network (computers, printers, phones)
• VLAN 20: Security cameras and NVR
• VLAN 30: Access control devices
• VLAN 40: Guest Wi-Fi

The NVR connects to both the camera VLAN (to receive video) and the business VLAN (so authorized users can view footage from their computers). This is configured on the managed switch and requires someone who understands basic network configuration.

Common PoE Switch Mistakes

Mistake 1: Buying Based on Port Count, Not PoE Budget

A 24-port PoE switch with a 150-watt budget can only power a fraction of its ports at full PoE load. Always check the total PoE budget, not just the number of ports.

Mistake 2: No VLAN Separation

Running cameras and business computers on the same flat network creates congestion and security vulnerabilities. Camera traffic, especially from multiple 4K cameras, can overwhelm a network that was not designed for it.

Mistake 3: Skipping the UPS

PoE switches power your cameras. If the switch loses power, every camera on that switch goes dark. A UPS (uninterruptible power supply) sized for your switch keeps cameras recording during power outages. In a security system, this is not optional.

Mistake 4: Ignoring Uplink Bandwidth

Your switch connects to the NVR or network backbone through an uplink port. If you have 16 cameras pushing video to the NVR, that uplink needs to handle the aggregate bandwidth. A single gigabit uplink can handle most systems, but larger deployments may need a 10-gigabit uplink or link aggregation.

Mistake 5: Poor Physical Installation

Switches need ventilation. I have seen switches crammed into closets with no airflow, stacked on top of other hot equipment, or mounted in locations where they overheat in summer. A switch that overheats throttles performance or shuts down, taking your cameras with it.

Recommended Approach and Equipment

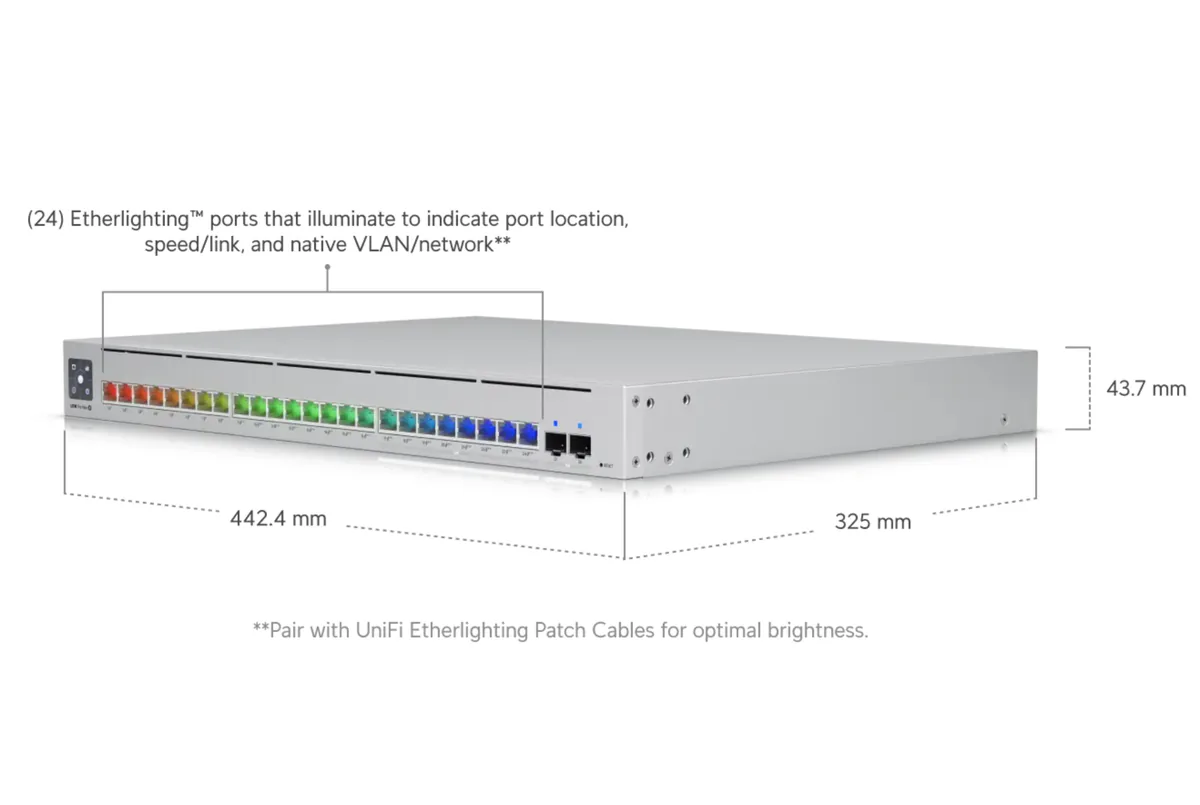

For most Chicago commercial and multi-tenant installations, I typically work with Ubiquiti UniFi switches. The UniFi ecosystem provides managed PoE switches with a clean management interface, solid VLAN support, and reliable performance at a reasonable cost. The UniFi Switch Pro 24 PoE and Switch Pro 48 PoE models have generous PoE budgets and SFP+ uplinks for larger deployments.

For enterprise environments or installations requiring advanced features like ERPS ring topology or granular QoS, switches from brands like Cisco, Aruba, or Juniper are appropriate. The right choice depends on the building’s existing network infrastructure and the IT team’s familiarity with the platform.

Practical Chicago Building Considerations

Closet Space and Ventilation

Many Chicago buildings have small, cramped telecom closets. Make sure there is adequate ventilation and enough space for proper cable management. A well-organized closet is easier to troubleshoot and maintains better airflow.

UPS Sizing

Size your UPS to keep the PoE switch and NVR running for at least 30 minutes during a power outage. In Chicago, where summer storms and winter ice can cause outages, this is critical for maintaining continuous recording.

Existing Cabling

If your building was wired with Cat5e, it supports PoE and gigabit Ethernet just fine. Cat6 is better for future-proofing and provides more headroom for longer runs, but Cat5e is not a reason to recable. Test existing runs before assuming they need replacement.

Getting It Right

The PoE switch is the backbone of any IP camera system. Spend the time to calculate your actual power requirements, choose a managed switch with adequate PoE budget and headroom, configure VLANs properly, and protect it with a UPS. These steps prevent the vast majority of camera system problems I see in the field.

If you need help designing the network infrastructure for a security camera system in Chicago, Vidimost LLC handles everything from switch selection to VLAN configuration. Call us at (872) 254-5015.
